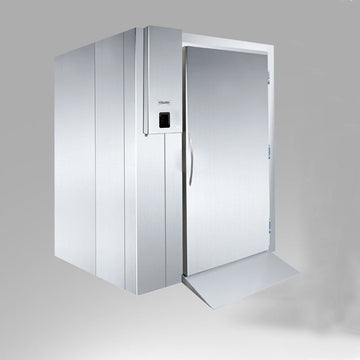

BLAST CHILLER AND RAPID FREEZER FOR N°20 OR 40 TRAYS - COOLING CAPACITY W 5.400 - EXTERNAL DIMENSIONS MM 950X1360XH2180
Functional high-capacity Blast chillers with either one or two pass-through doors for GN 1/1 – GN2/1 – EN60x40 – EN60x80 trolley insertion.
Equipped with digital control panel with full-colour graphic display and touch-sense keys, HACCP function and storage of up to 9 events for each alarm.
Moreover, it is possible to download the stored data thanks to a USB port.
Condensing units are silenced and faired as standard.
Electronic control panel with TFT full colour touch-screen graphic display and functional visualization icons.
Input of customized programs available, easy and user friendly menu available in 5 languages.
Cold room panel structure.
Construction completely in stainless steel AISI 304.
Inside with rounded corners and stainless steel bumpers.
Access ramp in stainless steel.
Useful passage mm 750x1860h – 100 mm insulation (70 mm for mod. 20) by environment-friendly polyurethane.
Easily openable evaporator cover for cleaning and maintenance.
Pre-arranged for insertion of GN1/1 – GN2/1 – EN60x40 – EN60x80 trolleys.
Digital control panel with full colour graphic display and touch-sense keys.
HACCP function with storage of up to 9 occurences for each alarm.
Blast chilling from +90° to +3°C by temperature based core probe or by time.
Shock freezing from +90° to -18°C by temperature-based core probe or by time.
HARD and SOFT cycle management, both during blast chilling and shock freezing.
Automatic activation of positive or negative storage phase at cycle end.
Possibility of recording chilling, freezing and storage cycles.
Automatic hot gas defrosting.
Signalling alarm buzzer.
Serial port for connection to supervision systems.
USB slot for recorded data download.
Working ambient temperature max +43°C.
Silenced condensing units with housing as standard.
Environment-friendly R404a refrigerating gas.
Self closing doors with easily replaceable magnetic gaskets.
Model: KTP 20 P
Refrigerating power watt: 5400
Absorption: 5,5 Kw / 9 A
Compressor Hp: 4
Weight Net/Gross kg: 247/294
Dimensions mm: 950x1350x2180h
Output – Blast chilling: +90°C/+3°C 120kg
Output – Shock freezing: +90°C/-18°C 90kg
Voltage: 380 V - 50 Hz - 3 ph+T
- Blast chillers are supplied assembled.
- The covered condensing unit is supplied separately.
