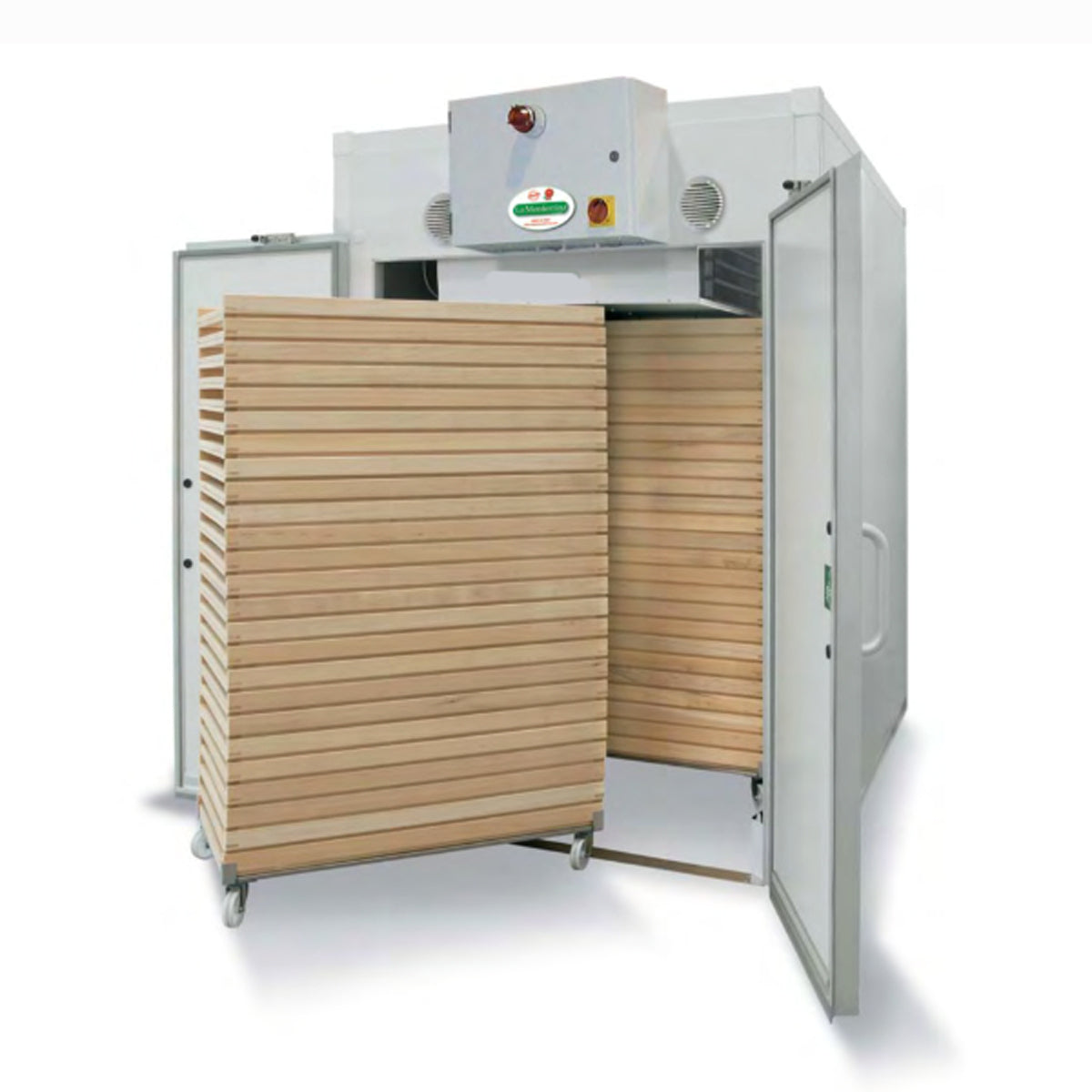

DRYER FOR PASTA FROM 2 TROLLEYS EC50
The dryer is built in insulating panels joined together to eliminate all internal and external thermal points. The panels are insulated with polyurethane injection and are PVC coated. The dryers have drying cells to allow air flows, temperature and humidity to be uniform, in order to obtain a homogeneous drying in all points of the dryer. The cells are equipped with two-way ventilation system, electric heating or hot water circuit, humidity extractors and air intake valves. The entire drying cycle is controlled by humidity and temperature probes. The automatic drying system is equipped with a PLC that allows you to choose, using a touch screen display, the most suitable recipe for the pasta format that you want to dry. This procedure allows an excellent final result guaranteed by the end of process control by means of residual moisture test and end of cycle stop. You can choose three drying phases; slow for the most demanding producers who are looking for a high quality product, quick to reduce costs and drying times and finally a phase studied by the customer according to their needs.
DATA:
Power Watt: 8500
Quantity trucks nr.: 2
Quantity sieves nr.: 50
Dimensions sieves mm: 600×1200
Quantity pasta Kg: 200
Dimensions dryer (LxPxH) mm: 1750x1550x2900
Voltage: 380 V - 50 Hz - 3 ph+T
PRICE ON REQUESTE
